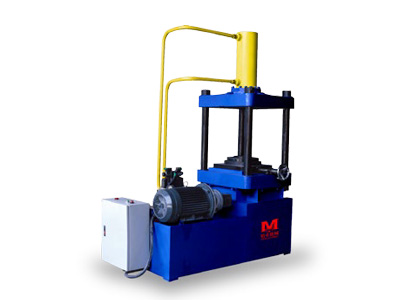

Die Presser
This machine adopts hydraulic drive. It is mainly used for the ejection and removal of the residual in the dies after the extrusion completed.
Service line

400-1088-778 / 0757-85588578

Main Features:

  • Stable operation, high nominal pressure, small in size, and flexible control and adjustment.
  • The residual material of different specifications and sectional dies can be pushed out by changing the different sizes of modules and punching needles.


Main Technical Parameters

Mode
JYRD300
JYRD400
JYRD600
JYRD1200
Type
Vertical
Vertical
Vertical
 Horizontal
Nominal Pressure
300 kN
400 kN
600 kN
1200 kN
Diameter of Die
≤ Φ350 mm
Φ350 ~ Φ450 mm
Φ450 ~ Φ600 mm
Φ550 ~ Φ1250 mm
Piercing Mandrel Size
≤ Φ30 mm
Φ25 ~ Φ40 mm
Φ35 ~ Φ50 mm
Φ60 ~ Φ100mm
Systemic Operating Pressure
16 MPa
16 MPa
20 MPa
25 MPa
Operational Ability
120 pcs/hour
80 pcs/hour
60 pcs/hour
20 件 pcs/hour
Total Power
7.5 kW
11 kW
15 kW
25 kW
Voltage
380 V
380 V
380 V
380 V
Dimension (L*W*H)
1400 × 800 × 2200
1600 × 1000 × 2300
1600 × 1200 × 2500
2200 × 2200 × 3000
Weight
1200 kg Approx.
1500 kg Aprox.
3000 kg Aprox.
15000 kg Approx.

NOTES: Customized design according to customers’ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.
